Semi commercial tracked chipper

R10t

  • Max.rpm 3.600/min
  • Fuel engine Euro 95/98,manuel start(Electric start optional)
  • Fuelconsumption +1-2 liters/h -Tank 6.0ltr
  • Maximum branch diameter 120 mm. Manufacturer suggested dia. 100mm maximum
  • Max.24 cubic meters/h of branches or 5 m3/h of chips
  • Height input feed hopper 0.9m
  • Feed hopper opening dimensions 67 cm(W)×-54cm(H)

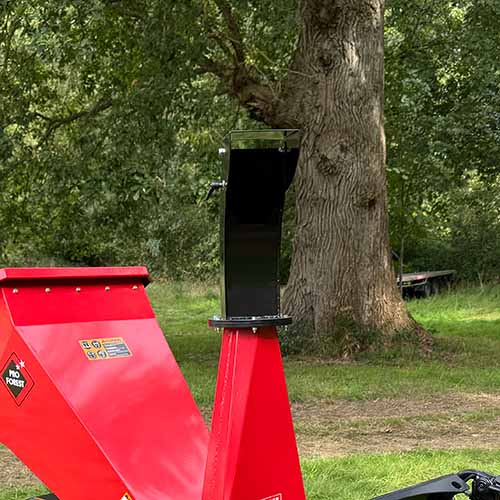

  • Discharge chute height 1.65 m-throws up to 5 meters
  • Adjustable outlet chute, 3 directions and 360°turnable
  • Rotor with two reversible knives and one counter knife
  • Rotor width/length knives 30cm
  • Double industrial v-belt drive
  • Emergency stop,easily accessible

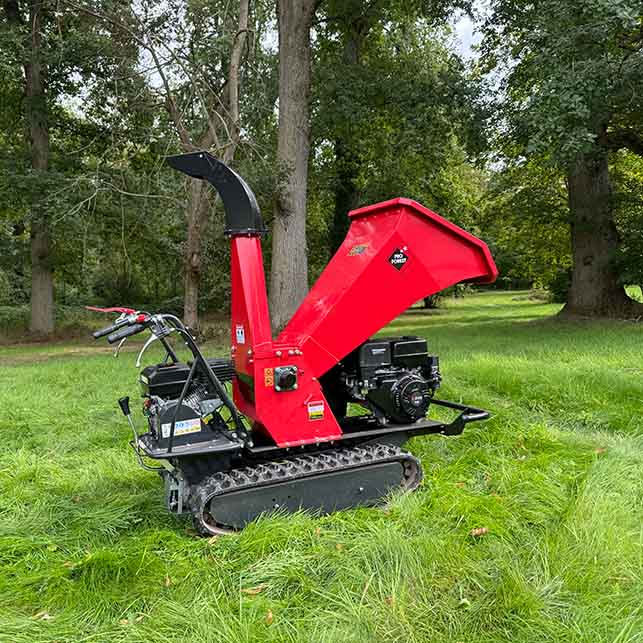

Tracked chipper

Wide Feeding Throat:

Boasts a 300mm wide feeding throat that accommodates larger branches and reduces the need for extensive pre-cutting, streamlining the chipping process.

Various Chassis Options: Offers flexibility with different chassis configurations to suit various operational needs:
  • Track Model:  Ideal for rough terrain, providing excellent stability and mobility across uneven surfaces.
  • Wheel Driven Model: Perfect for easy movement on more conventional terrains, enhancing portability around the job site.
  • Walk Behind Model:  Allows for manual maneuverability in tight spaces, suitable for small to medium-sized properties.
  • PTO Model: Designed to connect to a tractor’s power take-off, providing powerful chipping capability without the need for an independent engine.
3-Year Limited Warranty:

Comes with a three-year limited warranty, offering peace of mind and protection against manufacturing defects.

Compact and Mobile Design:

Despite its semi-commercial capabilities, this chipper is designed to be compact and easily mobile, facilitating efficient transport and storage.

Durability and Robust Construction:

Constructed with high-quality materials to withstand consistent use in a semi commercial environment, ensuring long-term durability and reliability.

Safety Features:

Includes essential safety features such as emergency shutoffs and protective guards to ensure operator safety during use.

Easy Maintenance Access:

Designed with accessibility in mind, allowing easy access to the blades and internal mechanisms for routine maintenance and cleaning.

Environmental Compliance:

Engineered to meet current environmental regulations, reducing emissions and noise levels, which is essential for semi-commercial operations in residential or noise-sensitive areas.

This 4-inch semi-commercial drum chipper is an excellent choice for landscaping professionals, small-scale forestry operations, and property owners who need a reliable, versatile, and efficient wood processing tool.

Technical specification

Length: 1400 mm / 4.6 ft
Width: 800 mm / 2.6 ft
Height: 1650 mm / 5.4 ft
Weight: 185 kg / 407 lbs
Output: 4-6 m3 per hour
Max. diameter: 100 mm / 4 inch

Chip system

Type: Drum
Width: 300 mm / 12 inch
Number of blades: 2 reversible
Hopper throat size: 510 x 420 mm / 20* 16.5 inch
Discharge with lower discharging window, 360 degree rotating optional

Others

Power option Gasoline engine, single cylinder
Power output: 8.8 kW @ 3600 rpmFuel tank capacity: 6.5 l
Power option Diesel engine, single cylinder
Power output: 7.7 kW @ 3600 rpmFuel tank capacity: 6.0 l
Power option Electric motor, 3 phases
Power output: 7.5 kW (control unit included)

Self propell chassis

FWD – 3 stage



Max speed: stage one/ 3km/h-stage two/ 6km/h
REV -1 stage Max speed: 5km/h
Engine: 196cc gasoline engine
Climbing capacity: 30 degree max
Rubber track 180mm wide
