PTO Wood Chipper

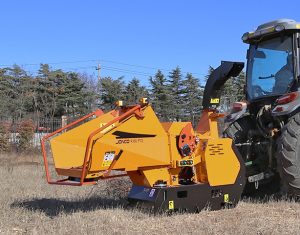

7 inch PTO drum wood chipper

  • The JONCO R18 PTO is commercial PTO DRUM wood chipper for both forest cleaning, Farm maintenance, or those with demand of a powerful chipper. A wide throat opening and powerful horizontal feed wheels help this overachieving chipper process stubborn branches and small trees without difficulty. And the durable construction means this wood chipper will withstand the daily stress of chipping for years to come.This wood chipper is a powerful, compact unit designed for property owners catering to brush cleanup, tree pruning, and backyard applications. Its self contained hydraulic system, make it easy to use, with NO request of tractorHinged yoke assembly with a single 450mm diameter x 370mm wide feed wheel;
  • 25 liter steel hydraulic tank with filters for both filling and return;
  • 45 horsepower or bigger tractor are all available;
  • Hydraulic flow control for feed wheel rate adjustment- IFS control system – optional;
  • 360 degree manual swivel discharge with 12″ adjustable chip deflector

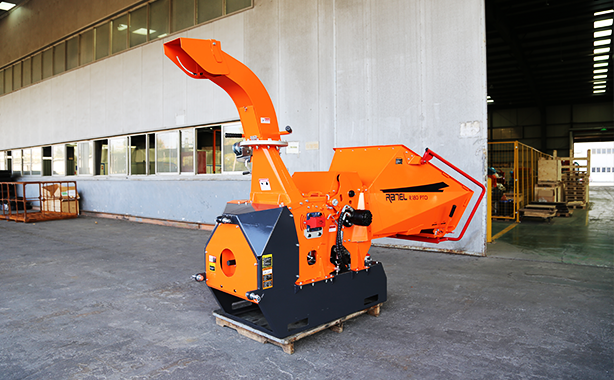

7-inch PTO Wood Chipper

PTO Driven Performance:

Designed to operate at a standard 540 RPM PTO input, making it compatible with a wide range of tractor models and ensuring efficient power usage.

Drum Chipper Design:

Equipped with a robust drum chipper mechanism, ideal for handling large branches and reducing wood into fine chips efficiently.

Wider Throat Opening:

Features an expanded throat opening to accommodate larger branches and debris, reducing the need for pre-cutting and facilitating easier feeding.

IFS Feeding Control:

Integrated with an Intelligent Feed System (IFS) that automatically adjusts the feeding speed based on the load, enhancing the chipping process and preventing machine overload.

High-Performance Hydraulic System:

Boasts a self-contained hydraulic system designed for high performance, ensuring smooth and powerful operation of the feeding mechanism without relying on the tractor’s hydraulics.

Single Feeding Roller:

Includes a robust single feeding roller system enhanced by a feeding assistant design. This design aids in the consistent and effective pulling of material into the chipper, minimizing jams and maintaining steady chip production.

Feeding Assistant Design:

This additional feature supports the single feeding roller, helping to guide the wood, esp. small twigs effectively into the machine and improving the overall efficiency and safety of the chipping process.

Safety Features:

Equipped with safety stops and reverse function to ensure operator safety and to allow easy clearing of jams without dismantling the machine.

Durability and Construction:

Constructed with high-quality materials and designed to withstand heavy use in various environmental conditions, ensuring longevity and reliability.

Easy Maintenance and Accessibility:

Designed with ease of maintenance in mind, featuring easy access to internal components for quick servicing and cleaning.

Compact and Mobile:

Despite its robust capabilities, this wood chipper is designed to be compact and easy to maneuver around the job site or property.

This feature-packed wood chipper is ideal for landowners and professionals looking for a reliable, efficient, and safe way to manage wood and debris.



Technical specification

Length : 2370 mm / 7.8 ft
Width : 1400 mm / 4.6 ft
Height : 2000 mm / 6.6 ft
Weight : 612 kg / 1349 lbs
Output: 12-16 m3/hour
Recommended max diameter : 180 mm / 7 inch

Chip system

Type: Drum with impeller on both sides
Blades : 2 reversible
Throat size (W×H) : 450 x 370 mm / 17.7*14.6 inch

Other

Width : 1240mm / 48.8 inch
Operate height: 750mm / 29.5 inch
3-point linkage Category 1/2
Power PTO 45hp+ (70hp+ for 7 inch )
PTO RPM 540 rpm
Tractor hitch Electrical system 12V
Safety elements Safety bar, emergency stop
Accessories Cardan shaft L= 900 mm (6-6)

Operate manual

Version 2401-English
